608/HR11TN轴承
更新日期：2025/5/1简介: SKF轴承608/HR11TN 类型为聚合物球轴承,单列球轴承, POM/POM/stainless steel/PA66， 内径为:8mm外径为:22mm厚度为:7mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF 608/HR11TN轴承 代号,608/HR11TN基本尺寸,安装尺寸,基本额定载荷,精度等级,装配, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

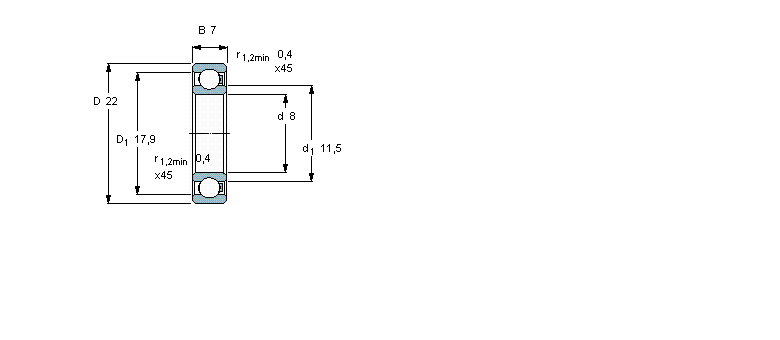

聚合物球轴承,单列球轴承, POM/POM/stainless steel/PA66608/HR11TN轴承 样本图纸
| 聚合物球轴承,单列球轴承, POM/POM/stainless steel/PA66 | ||||||||
|
||||||||
| 主要数据尺寸 | 负荷能力 | 额定速度 | 体积 | 型号 | ||||
| d | D | B | 动态 1) | 静态 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 8 | 22 | 7 | 0,08 | 0,055 | 2200 | 0,0036 | 608/HR11TN | |
