623/HR22T2轴承
更新日期：2025/6/16简介: SKF轴承623/HR22T2 类型为聚合物球轴承,单列球轴承, PP/PP/stainless steel/PP， 内径为:3mm外径为:10mm厚度为:4mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF 623/HR22T2轴承 配合安装尺寸,基本尺寸,滚子粒数,623/HR22T2价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

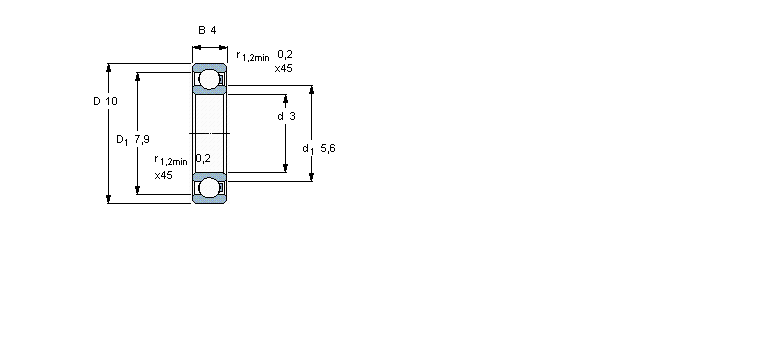

聚合物球轴承,单列球轴承, PP/PP/stainless steel/PP623/HR22T2轴承 样本图纸
| 聚合物球轴承,单列球轴承, PP/PP/stainless steel/PP | ||||||||
|
||||||||
| 主要数据尺寸 | 负荷能力 | 额定速度 | 体积 | 型号 | ||||
| d | D | B | 动态 1) | 静态 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 3 | 10 | 4 | 0,03 | 0,025 | 3960 | 0,0003 | 623/HR22T2 | |
