6301/HR22Q2轴承
更新日期：2025/5/1简介: SKF轴承6301/HR22Q2 类型为聚合物球轴承,单列球轴承, PP/PP/glass/PP， 内径为:12mm外径为:37mm厚度为:12mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF 6301/HR22Q2轴承 配合安装尺寸,安装尺寸,重量,额定动负荷,载荷,6301/HR22Q2极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

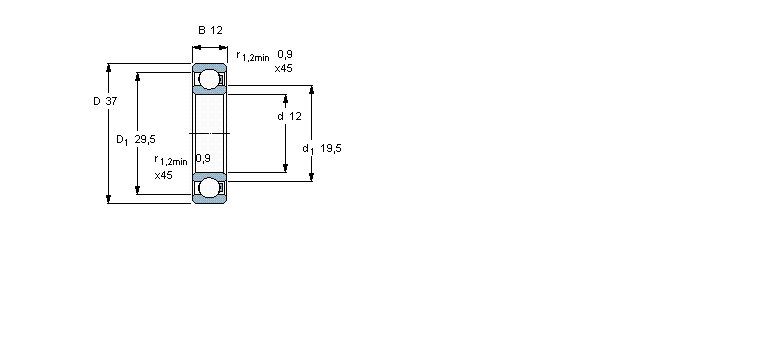

聚合物球轴承,单列球轴承, PP/PP/glass/PP6301/HR22Q2轴承 样本图纸
| 聚合物球轴承,单列球轴承, PP/PP/glass/PP | ||||||||
|
||||||||
| 主要数据尺寸 | 负荷能力 | 额定速度 | 体积 | 型号 | ||||
| d | D | B | 动态 1) | 静态 2) | 最大 3) | 最大 | - | |
| 1) above 50 °C and/or above 20 % | 3) Consider load carrying | |||||||
| of max speed rating consider | capability reduction according | |||||||
| reduction according to diagram | to diagram | |||||||
| 2) above 50 °C consider | ||||||||
| reduction according to diagram | ||||||||
|
|
||||||||
| mm | kN | r/min | kg | - | ||||
|
|
||||||||
| 12 | 37 | 12 | 0,215 | 0,17 | 1140 | 0,019 | 6301/HR22Q2 | |
