71908FB/P7轴承
更新日期：2025/5/1简介: SKF轴承71908FB/P7 类型为角接触球轴承, 精密, FB, contact angle 18°， 内径为:40mm外径为:62mm厚度为:12mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF 71908FB/P7轴承 配合安装尺寸,基本尺寸,滚子粒数,71908FB/P7价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

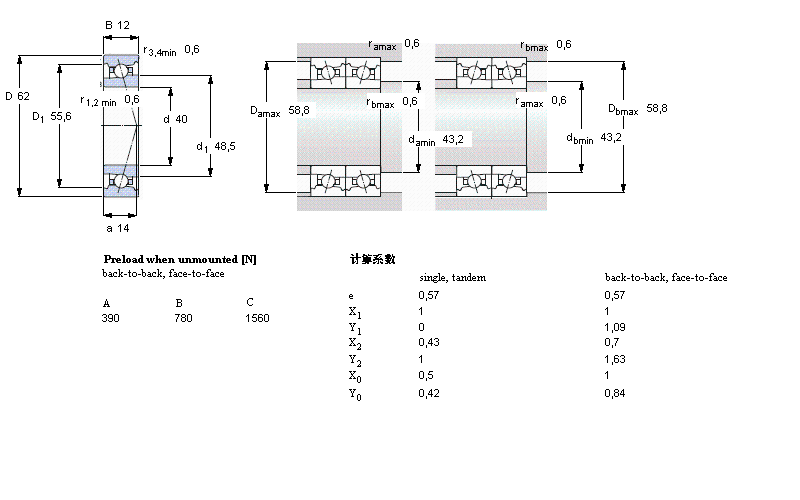

角接触球轴承, 精密, FB, contact angle 18°71908FB/P7轴承 样本图纸
| 角接触球轴承, 精密, FB, contact angle 18° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 40 | 62 | 12 | 7,15 | 7,2 | 0,305 | 28000 | 43000 | 0,12 | 71908 FB/P7 | - | |
