71948ACD/P4A轴承
更新日期：2025/5/1简介: SKF轴承71948ACD/P4A 类型为角接触球轴承, 精密, ACD, contact angle 25°， 内径为:240mm外径为:320mm厚度为:38mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF 71948ACD/P4A轴承 配合安装尺寸,安装尺寸,重量,额定动负荷,载荷,71948ACD/P4A极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

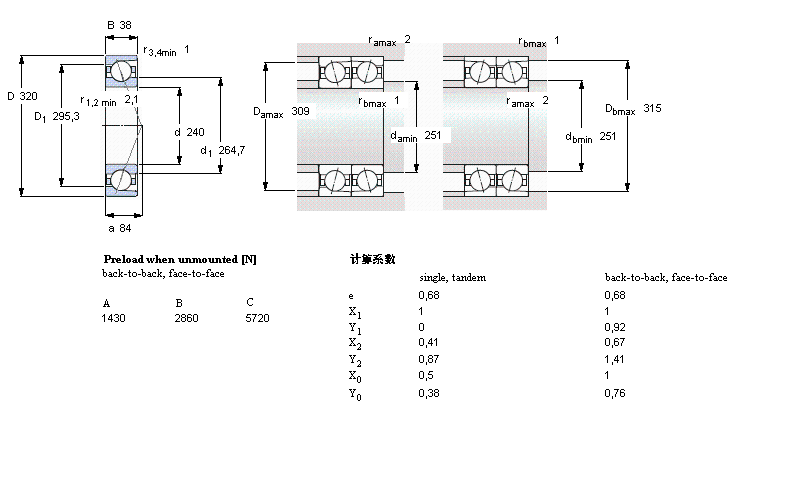

角接触球轴承, 精密, ACD, contact angle 25°71948ACD/P4A轴承 样本图纸
| 角接触球轴承, 精密, ACD, contact angle 25° | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 240 | 320 | 38 | 212 | 300 | 7,5 | 3200 | 4800 | 8,5 | 71948 ACD/P4A | - | |
