简介: SKF轴承C7019FB/P7 类型为角接触球轴承, 精密, C .. FB, contact angle 18°, hybrid, 内径为:95mm外径为:145mm厚度为:24mm 轴承内圈,外圈更多详细资料您可致电我司,获取SKF C7019FB/P7轴承 代号,C7019FB/P7基本尺寸,安装尺寸,基本额定载荷,精度等级,装配, 轴承的图纸、样品、价格或者替换产品等!咨询电话:0512-62658883

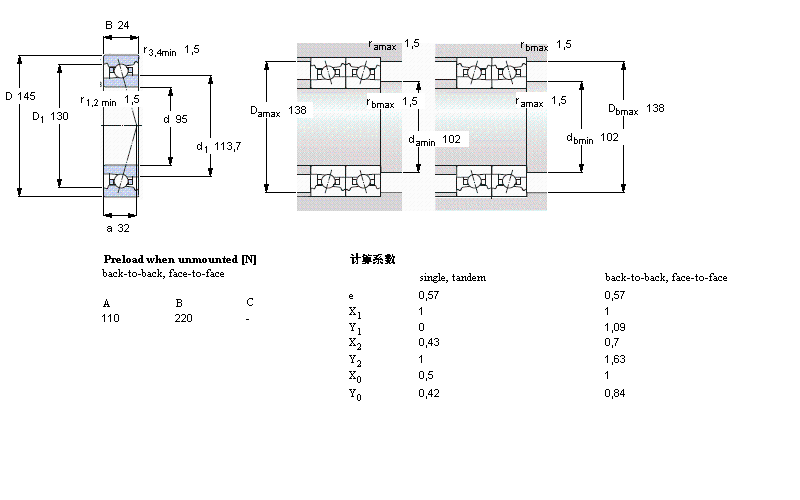

角接触球轴承, 精密, C .. FB, contact angle 18°, hybridC7019FB/P7轴承 样本图纸
角接触球轴承, 精密, C .. FB, contact angle 18°, hybrid | |||||||||||
公差 , see also text / text 718 (SEA) series | |||||||||||
预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
Recommended fits, shafts, housings | |||||||||||
轴和轴承座公差 | |||||||||||
主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
d | D | B | C | C0 | Pu | ||||||
mm | kN | kN | r/min | kg | - | ||||||
95 | 145 | 24 | 39 | 44 | 1,73 | 14000 | 20000 | 1,16 | C7019 FB/P7 | - |
