C71914FB/P7轴承
更新日期：2025/11/2简介: SKF轴承C71914FB/P7 类型为角接触球轴承, 精密, C .. FB, contact angle 18°, hybrid， 内径为:70mm外径为:100mm厚度为:16mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF C71914FB/P7轴承 游隙尺寸,游隙尺寸表,滚子粒数,C71914FB/P7报价,价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

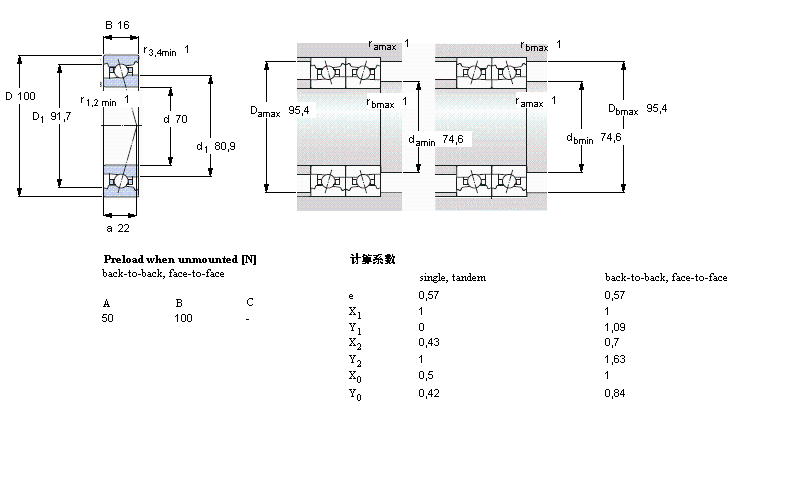

角接触球轴承, 精密, C .. FB, contact angle 18°, hybridC71914FB/P7轴承 样本图纸
| 角接触球轴承, 精密, C .. FB, contact angle 18°, hybrid | |||||||||||
| 公差 , see also text / text 718 (SEA) series | |||||||||||
| 预压, see specific product, see also text, unmounted, and text, mounted / text 718 (SEA) series | |||||||||||
| Recommended fits, shafts, housings | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | Listing of both SKF and SNFA designations means that | |||||||||
| d | D | B | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 70 | 100 | 16 | 18,2 | 21,2 | 0,9 | 18000 | 30000 | 0,33 | C71914 FB/P7 | - | |
