FBSA206A/QFC轴承
更新日期：2025/5/1简介: SKF轴承FBSA206A/QFC 类型为角接触推力球轴承 for screw drives, cartridge units with flanged housing， 内径为:30mm外径为:88mm厚度为:86mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF FBSA206A/QFC轴承 游隙尺寸,游隙尺寸表,滚子粒数,FBSA206A/QFC报价,价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

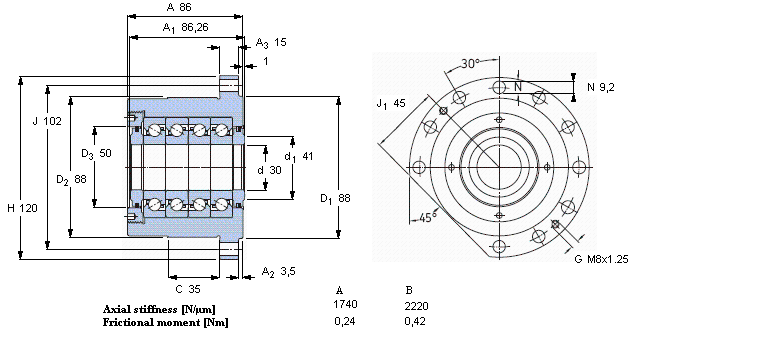

角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA206A/QFC轴承 样本图纸
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 30 | 88 | 86 | 46,455 | 142 | 5,3 | 4000 | 2000 | 3,7 | FBSA 206 A/ QFC | BSQU 230/1 TFT | |
