FBSA210/DF轴承
更新日期：2025/6/17简介: SKF轴承FBSA210/DF 类型为角接触推力球轴承 for screw drives, cartridge units with flanged housing， 内径为:50mm外径为:124mm厚度为:66mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF FBSA210/DF轴承 游隙尺寸,游隙尺寸表,滚子粒数,FBSA210/DF报价,价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

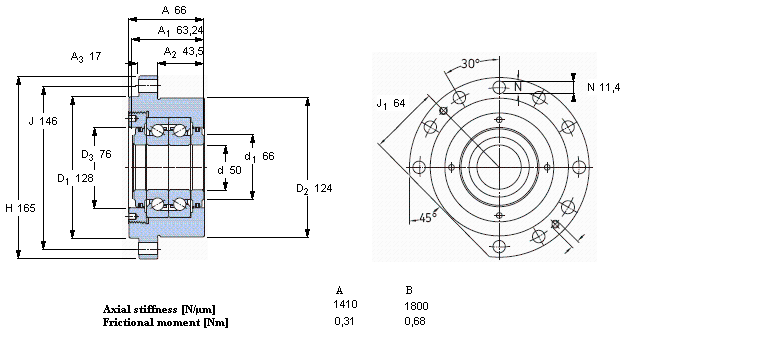

角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA210/DF轴承 样本图纸
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 50 | 124 | 66 | 46,5 | 146 | 5,4 | 4800 | 2400 | 5,7 | FBSA 210/ DF | BSDU 250 FF | |
