BEAM040115-2RS轴承
更新日期：2025/5/1简介: SKF轴承BEAM040115-2RS 类型为角接触推力球轴承 for screw drives, double direction, for bolt mounting， 内径为:40mm外径为:115mm厚度为:46mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF BEAM040115-2RS轴承 配合安装尺寸,安装尺寸,重量,额定动负荷,载荷,BEAM040115-2RS极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

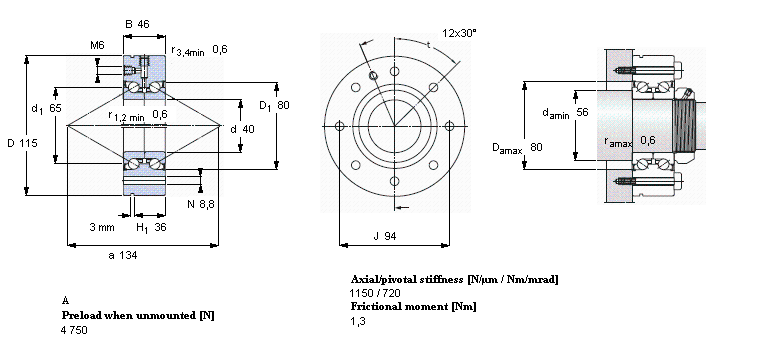

角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM040115-2RS轴承 样本图纸
| 角接触推力球轴承 for screw drives, double direction, for bolt mounting | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 40 | 115 | 46 | 71,5 | 150 | 5,5 | 1800 | 2,20 | BEAM 040115-2RS | BEAM 40/115/C 7P60 | |
