FBSA204/DB轴承
更新日期：2025/11/2简介: SKF轴承FBSA204/DB 类型为角接触推力球轴承 for screw drives, cartridge units with flanged housing， 内径为:20mm外径为:60mm厚度为:47mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF FBSA204/DB轴承 配合安装尺寸,安装尺寸,重量,额定动负荷,载荷,FBSA204/DB极限转速,游隙, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

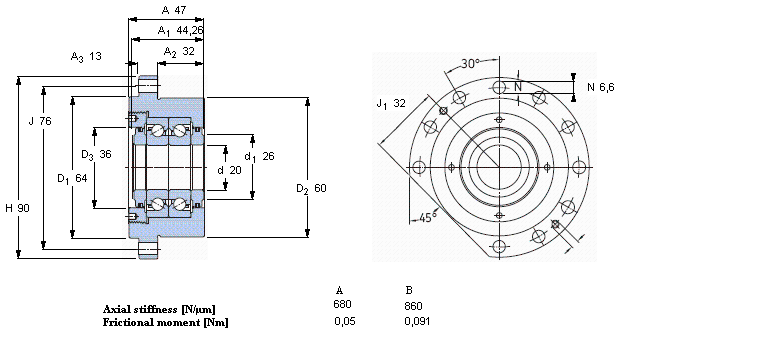

角接触推力球轴承 for screw drives, cartridge units with flanged housingFBSA204/DB轴承 样本图纸
| 角接触推力球轴承 for screw drives, cartridge units with flanged housing | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 预压 | SKF | SNFA | |||||||
| A | B | ||||||||||
| d | D2 | A | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 20 | 60 | 47 | 22 | 49 | 1,8 | 7600 | 3800 | 1,1 | FBSA 204/ DB | BSDU 220 DD | |
