BEAM017062-2RS轴承

更新日期：2025/5/1

简介: SKF轴承BEAM017062-2RS 类型为角接触推力球轴承 for screw drives, double direction, for bolt mounting， 内径为:17mm外径为:62mm厚度为:25mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF BEAM017062-2RS轴承 配合安装尺寸,基本尺寸,滚子粒数,BEAM017062-2RS价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

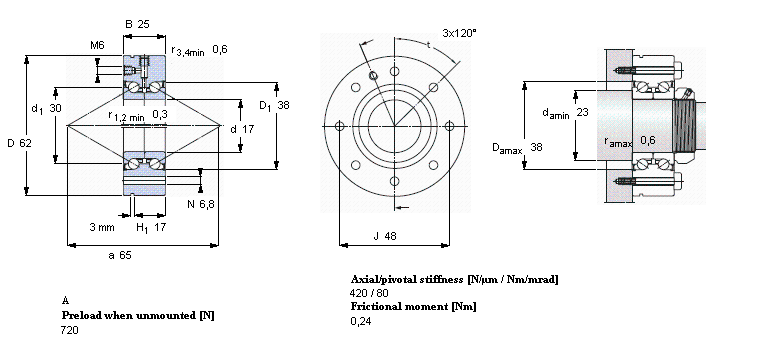

角接触推力球轴承 for screw drives, double direction, for bolt mountingBEAM017062-2RS轴承 样本图纸

	角接触推力球轴承 for screw drives, double direction, for bolt mounting
								公差, inner rings, outer rings, see also text
								Preload, see specific bearing, see also text
								Shaft fits, housing fits
								轴和轴承座公差
	主要数据尺寸			基本负荷额定值		疲劳负荷限值	Attainable speed	体积	型号
				动态	静态				SKF	SNFA
	d	D	H	C	C0	Pu
	mm			kN		kN	r/min	kg	-
	17	62	25	19	31	1,16	3800	0,45	BEAM 017062-2RS	BEAM 17/62/C 7P60
