BEAS025057-2RS轴承
更新日期：2025/5/1简介: SKF轴承BEAS025057-2RS 类型为角接触推力球轴承 for screw drives, double direction， 内径为:25mm外径为:57mm厚度为:28mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF BEAS025057-2RS轴承 游隙尺寸,游隙尺寸表,滚子粒数,BEAS025057-2RS报价,价格,外形尺寸,锥度, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

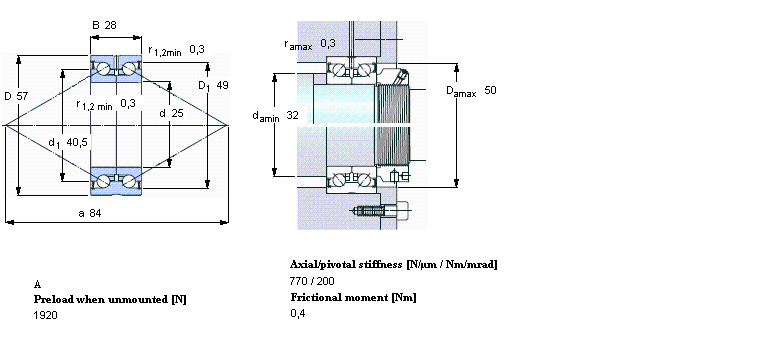

角接触推力球轴承 for screw drives, double directionBEAS025057-2RS轴承 样本图纸
| 角接触推力球轴承 for screw drives, double direction | ||||||||||
| 公差, inner rings, outer rings, see also text | ||||||||||
| Preload, see specific bearing, see also text | ||||||||||
| Shaft fits, housing fits | ||||||||||
| 轴和轴承座公差 | ||||||||||
|
||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | Attainable speed | 体积 | 型号 | |||||
| 动态 | 静态 | SKF | SNFA | |||||||
| d | D | H | C | C0 | Pu | |||||
|
|
||||||||||
| mm | kN | kN | r/min | kg | - | |||||
|
|
||||||||||
| 25 | 57 | 28 | 27,6 | 55 | 2,04 | 3400 | 0,34 | BEAS 025057-2RS | BEAS 25/57/C 7P60 | |
