BSD55120CG轴承
更新日期：2025/6/16简介: SKF轴承BSD55120CG 类型为角接触推力球轴承 for screw drives, single direction， 内径为:55mm外径为:120mm厚度为:20mm 轴承内圈,外圈更多详细资料您可致电我司，获取SKF BSD55120CG轴承 代号,BSD55120CG基本尺寸,安装尺寸,基本额定载荷,精度等级,装配, 轴承的图纸、样品、价格或者替换产品等！咨询电话:0512-62658883

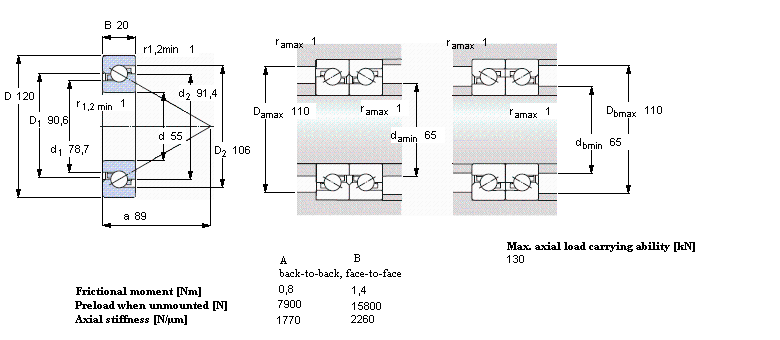

角接触推力球轴承 for screw drives, single directionBSD55120CG轴承 样本图纸
| 角接触推力球轴承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 轴和轴承座公差 | |||||||||||
|
|||||||||||
| 主要数据尺寸 | 基本负荷额定值 | 疲劳负荷限值 | 可达到的速度 | 体积 | 型号 | ||||||
| 动态 | 静态 | 当润滑与 | SKF | SNFA | |||||||
| 油脂 | 滴油润滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 55 | 120 | 20 | 69,5 | 216 | 8 | 5000 | 6000 | 1,14 | BSD 55120 CG | BS 55/120 7P62U | |
